浮動螺母 BF-AS,-AC,LAS,LAC
BF壓鉚緊固件——螺母系列：
BF浮動螺母（AC,AS,LAC,LAS）

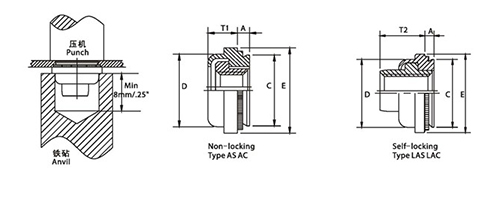

安裝示意圖
BF牌浮動螺母，可為0.8mm厚度以上的薄板提供堅固的螺紋，并能很好的配合打孔時的誤差。安裝方便簡單快速，強有力的鎖緊性能使其具有很高的抗拉出力和抗扭轉力。
從中心任意方向最小浮動為.015"-0.4mm, 全部為.030"-0.8mm
公制計量：mm
螺紋×螺距 |
型號 |
螺紋尺寸 |
連鎖尺寸 |
A
Max |
最小板厚 |
安裝孔尺寸+0.08 |
C
Max. |
D
Max |
T1
Max |
T2 Max |
板孔最小邊距 |
| 非自鎖螺紋 |
自鎖螺紋 |
| 鋼 |
不銹鋼 |
鋼 |
不銹鋼 |
| M3×0.5 |
AS |
AC |
LAS |
LAC |
M3 |
1 |
0.97 |
1 |
7.37 |
7.35 |
7.37 |
3.31 |
4.83 |
7.62 |
| 2 |
1.38 |
1.4 |
| M4×0.7 |
AS |
AC |
LAS |
LAC |
M4 |
1 |
0.97 |
1 |
9.35 |
9.33 |
9.28 |
3.31 |
5.34 |
8.64 |
| 2 |
1.38 |
1.4 |
| M5×0.8 |
AS |
AC |
LAS |
LAC |
M5 |
1 |
0.97 |
1 |
10.31 |
10.29 |
10.29 |
4.32 |
6.86 |
9.14 |
| 2 |
1.38 |
1.4 |
| M6×1 |
AS |
AC |
LA |
LAC |
M6 |
2 |
1.38 |
1.4 |
13.08 |
13.06 |
12.96 |
5.34 |
7.88 |
10.67 |
英制計量：英寸
螺紋尺寸 |
型號 |
螺紋尺寸 |
連鎖尺寸 |
A Max |
最小板厚 |
安裝孔尺寸+.003
-.000 |
C Max. |
D Max |
T1 Max |
T2 Max |
板孔最小邊距 |
| 非自鎖螺紋 |
自鎖螺紋 |
| 鋼 |
不銹鋼 |
鋼 |
不銹鋼 |
|
.112-40(#4-40) |
AS |
AC |
LAS |
LAC |
440 |
1 |
.038 |
.040 |
.290 |
.289 |
.290 |
.13 |
.19 |
.30 |
|
2 |
.054 |
.056 |
|
.138-32(#6-32) |
AS |
AC |
LAS |
LAC |
632 |
1 |
.038 |
.040 |
.328 |
.327 |
.335 |
.13 |
.20 |
.32 |
| 2 |
.054 |
.056 |
|
.164-32(#8-32) |
AS |
AC |
LAS |
LAC |
832 |
1 |
.038 |
.040 |
.368 |
.367 |
.365 |
.13 |
.21 |
.34 |
| 2 |
.054 |
.056 |
|
.190-24(#10-24) |
AS |
AC |
LAS |
LAC |
024NS |
1 |
.038 |
.040 |
.406 |
.405 |
.405 |
.17 |
.27 |
.36 |
| 2 |
.054 |
.056 |
|
.190-32(#10-32) |
AS |
AC |
LAS |
LAC |
032 |
1NS |
.038 |
.040 |
.406 |
.405 |
.405 |
.17 |
.27 |
.36 |
| 2 |
.054 |
.056 |
|
.250-20(1/4-20) |
AS |
AC |
LAS |
LAC |
0420 |
2 |
.054 |
.056 |
.515 |
.514 |
.510 |
.21 |
.31 |
.42 |
|
.250-28(1/4-28) |
AS |
AC |
LAS |
LAC |
0428NS |
2 |
.054 |
.056 |
.515 |
.514 |
.510 |
.21 |
.31 |
.42 |
