壓鉚螺母 BF-S,CLS,SP
BF壓鉚緊固件——螺母系列：
壓鉚螺母 BF-S,CLS,SP

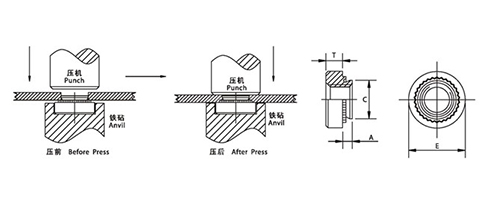

CL系列一般用于鋁，鋼，不銹鋼和可塑性材料的薄板。CL系列已有50多年生產歷史，解決了因為薄板而不能攻絲的難題，得到全球制造商的普遍認可和使用。安裝簡單快速，不需要太多經驗和太高的操作技術。壓制鉚接安裝后產生強大阻拉力和抗扭轉力。
碳鋼S.SS、不銹鋼CLS.CLSS螺母 公制計量：mm
| 螺紋 |
型號 |
螺紋型號 |
底端碼 |
A Max |
最小板厚 |
安裝孔+0.08 |
C Max |
E ±0.25 |
T ±0.25 |
最小邊距 |
| 碳鋼 |
不銹鋼 |
| M2 |
S |
CLSNS |
M2 |
0 |
0.77 |
0.8 |
4.25 |
4.22 |
6.3 |
1.5 |
4.8 |
| 1 |
0.97 |
1 |
| 2 |
1.38 |
1.4 |
| M2.5 |
S |
CLS |
M2.5 |
0 |
0.77 |
0.8 |
4.25 |
4.22 |
6.3 |
1.5 |
4.8 |
| 1 |
0.97 |
1 |
| 2 |
1.38 |
1.4 |
| M3 |
S |
CLS |
M3 |
0 |
0.77 |
0.8 |
4.25 |
4.22 |
6.3 |
1.5 |
4.8 |
| 1 |
0.97 |
1 |
| 2 |
1.38 |
1.4 |
| M3.5 |
S |
CLS |
M3.5 |
0 |
0.77 |
0.8 |
4.75 |
4.73 |
7.1 |
1.5 |
5.6 |
| 1 |
0.97 |
1 |
| 2 |
1.38 |
1.4 |
| M4 |
S |
CLS |
M4 |
0 |
0.77 |
0.8 |
5.4 |
5.38 |
7.9 |
2 |
6.9 |
| 1 |
0.97 |
1 |
| 2 |
1.38 |
1.4 |
| M5 |
SS |
CLSS |
M5 |
0 |
0.77 |
0.8 |
6.4 |
6.38 |
8.7 |
2 |
7.1 |
| 1 |
0.97 |
1 |
| 2 |
1.38 |
1.4 |
| M6 |
S |
CLS |
M6 |
0 |
1.15 |
1.2 |
8.75 |
8.72 |
11.05 |
4.08 |
8.6 |
| 1 |
1.38 |
1.4 |
| 2 |
2.21 |
2.3 |
| M8 |
S |
CLSNS |
M8 |
1 |
1.38 |
1.4 |
10.5 |
10.47 |
12.65 |
5.47 |
9.7 |
| 2 |
2.21 |
2.3 |
| M10 |
S |
CLS |
M10NS |
1 |
2.21 |
2.31 |
14 |
13.97 |
17.35 |
7.48 |
13.5 |
| 2 |
3.05 |
3.18 |
英制計量 單位：英寸
螺紋尺寸 |
型號 |
螺紋型號 |
底端編碼代號 |
A max |
最小板厚 |
安裝孔尺寸+0.08 |
C max |
E ±.010 |
T ±.010 |
最小邊距 |
| 碳鋼 |
不銹鋼 |
| .086-56(#2-56) |
S |
CLS |
256 |
0 |
`.030 |
.030 |
.166 |
.165 |
.25 |
.07 |
.19 |
| 1 |
.038 |
.040 |
| 2 |
.054 |
.056 |
| .099-48(#3-48) |
S |
CLS |
348NS |
0 |
.030 |
.030 |
.166 |
.165 |
.25 |
.07 |
.19 |
| 1 |
.038 |
.040 |
| 2 |
.054 |
.056 |
| .112-40(#4-40) |
S |
CLS |
440 |
0 |
.030 |
.030 |
.166 |
.165 |
.25 |
.07 |
.19 |
| 1 |
.038 |
.040 |
| 2 |
.054 |
.056 |
| 3 |
.087 |
.091 |
| .138-32(#6-32) |
S |
CLS |
632 |
0 |
.030 |
.030 |
.1875 |
.187 |
.28 |
.07 |
.22 |
| 1 |
.038 |
.040 |
| 2 |
.054 |
.056 |
| 3 |
.087 |
.091 |
| .164-32(#8-32) |
S |
CLS |
832 |
0 |
.030 |
.030 |
.213 |
.212 |
.31 |
.09 |
.27 |
| 1 |
.038 |
.040 |
| 2 |
.054 |
.056 |
| 3 |
.087 |
.091 |
| .190-24(#10-24) |
SS |
CLSS |
024 |
0 |
.030 |
.030 |
.250 |
.249 |
.34 |
.09 |
.28 |
| 1 |
.038 |
.040 |
| 2 |
.054 |
.056 |
| 3 |
.087 |
.091 |
| .190-32(#10-32) |
SS |
CLSS |
032 |
0 |
.030 |
.030 |
.250 |
.249 |
.34 |
.09 |
.28 |
| 1 |
.038 |
.040 |
| 2 |
.054 |
.056 |
| 3 |
.087 |
.091 |
| .216-24(#12-24) |
S |
CLS |
1224 |
1NS |
.038 |
.040 |
.277 |
.276 |
.38 |
.13 |
.31 |
| 2 |
.054 |
.056 |
| 3 |
.087 |
.091 |
| .250-20(1/4-20) |
S |
CLS |
0420 |
0 |
.045 |
.047 |
.344 |
.343 |
.44 |
.17 |
.34 |
| 1 |
.054 |
.056 |
| 2 |
.087 |
.091 |
| 3 |
.120 |
.125 |
| .250-28(1/4-28) |
S |
CLS |
0428 |
1 |
.054 |
.056 |
.344 |
.343 |
.44 |
.17 |
.34 |
| 2 |
.087 |
.091 |
| 3NS |
.120 |
.125 |
| .313-18(5/16-18) |
S |
CLS |
0518 |
1 |
.054 |
.056 |
.413 |
.412 |
.50 |
.23 |
.38 |
| 2 |
.087 |
.091 |
| 3 |
.120 |
.125 |
| .313-24(5/16-24) |
S |
CLS |
0524NS |
1 |
.054 |
.056 |
.413 |
.412 |
.50 |
.23 |
.38 |
| 2 |
.087 |
.091 |
| 3NS |
.120 |
.125 |
| .375-16(3/8-16) |
S |
CLS |
0616 |
1 |
.087 |
.091 |
.500 |
.499 |
.56 |
.27 |
.44 |
| 2 |
.120 |
.125 |
| 3 |
.235 |
.250 |
| .375-24(3/8-24) |
S |
CLS |
0624NS |
1 |
.087 |
.091 |
.500 |
.499 |
.56 |
.27 |
.44 |
| 2 |
.120 |
.125 |
| 3 |
.235 |
.250 |
| .500-13(1/2-13) |
S |
CLSNS |
0813 |
1 |
.120 |
.125 |
.656 |
.655 |
.81 |
.36 |
.63 |
| 2 |
.235 |
.250 |
| .500-20(1/2-20) |
S |
CLSNS |
0820 |
1 |
.120 |
.125 |
| 2 |
.235 |
.250 |
用于不銹剛.型號 SPTM公制計量 單位：mm
螺紋尺寸×螺距 |
型號 |
螺紋型號 |
底端編碼代號 |
A Max |
最小板厚 |
安裝孔尺寸+0.08 |
C Max |
E ±0.25 |
T ±0.25 |
最小邊距 |
| M2×0.5 |
SP |
M3 |
0 |
0.76 |
0.8-1 |
4.25 |
4.22 |
6.3 |
1.5 |
4.8 |
| 1 |
0.97 |
1.01-1.39 |
| 2 |
1.37 |
1.4Min. |
| M4× 0.7 |
SP |
M4 |
0 |
0.76 |
0.8-1 |
5.4 |
5.38 |
7.9 |
2 |
6.9 |
| 1 |
0.97 |
1.01-1.39 |
| 2 |
1.37 |
1.4Min. |
| M5× 0.8 |
SP |
M5 |
0 |
0.76 |
0.8-1 |
6.4 |
6.38 |
8.7 |
2 |
7.1 |
| 1 |
0.97 |
1.01-1.39 |
| 2 |
1.37 |
1.4Min. |
| M6×1 |
SP |
M6 |
1 |
1.37 |
1.4Min. |
8.75 |
8.72 |
11.1 |
4.1 |
8.6 |
英制計量 單位：英寸
螺紋尺寸 |
型號 |
螺紋型號 |
底端編碼代號 |
A
Max. |
最小板厚 |
安裝孔尺寸+.003/-.000 |
C
Max. |
E
±.010 |
T ±.010 |
最小邊距 |
| .112-40(#4-40) |
SP |
440 |
0 |
.030 |
.030-.039 |
.166 |
.165 |
.25 |
.07 |
.19 |
| 1 |
.038 |
.040-.055 |
| 2 |
.054 |
.056Min. |
| .138-32(#6-32) |
SP |
632 |
0 |
.030 |
.030-.039 |
.1875 |
.187 |
.28 |
.07 |
.22 |
| 1 |
.038 |
.040-.055 |
| 2 |
.054 |
.056Min. |
| .164-32(#8-32) |
SP |
832 |
0 |
.030 |
.030-.039 |
.213 |
.212 |
.31 |
.09 |
.27 |
| 1 |
.038 |
.040-.055 |
| 2 |
.054 |
.056Min |
| .190-32(#10-32) |
SP |
032 |
0 |
.030 |
.030-.039 |
.250 |
.249 |
.34 |
.09 |
.28 |
| 1 |
.038 |
.040-.055 |
| 2 |
.054 |
.056Min. |
| .250-20(1/4-20) |
SP |
0420 |
1 |
.054 |
.056Min. |
.344 |
.343 |
.44 |
.17 |
.34 | 下一個產品返回 >>
|
